DHY 308
NEW GENERATION LASER TARGET DESIGNATOR
CONÇU POUR LE COMBAT TERRESTRE
- Compatible avec les munitions de l’OTAN et programmable selon d’autres référentiels de codification
- Léger et capable de désigner des cibles à longue distance
- Laser pompé par diode athermique
- Ne nécessite pas de refroidissement actif
- Conforme à la norme Stanag 3733
- Conçu pour un contrôle simplifié des exportations
LIGHTWEIGHT AND PRECISE
Main modules
- Designation/Range finder unit
- Pan & Tilt head
- Battery
- Remote control unit
- Digital Magnetic Compass (DMC) in option
- GPS in option
Validated integrations with
- Hand-Held Thermal Imagers (HHTI)
- Target locators
- Digital Aided Close Air Support (DACAS)
- Fire-Control Systems (FCS)
Accessories
- Ask for CILAS wide portfolio

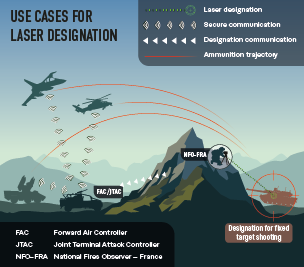

MAIN USERS
- Joint Terminal Air Controllers (JTACs)
- Forward Air Controllers (FAC)
- Special Forces (SF)
- Artillery Observers (AO)
PARAMÈTRES GÉNÉRAUX | |
---|---|
POIDS DE L’ILLUMINATEUR AVEC BATTERIE |
< 4 kg |
TEMPÉRATURE DE FONCTIONNEMENT |
-21°C à +49°C |
PARAMÈTRES DE DÉSIGNATION | |
---|---|
OUTPUT ENERGY | > 80 mJ |
BEAM DIVERGENCE | < 0,35 mrad |
RANGE | 10 km on buildings 5 km on OTAN targets |
LASER RANGE FINDER PARAMETERS | |
---|---|
DISTANCE | 20 km |
EXTINCTION RATE | > 37 dB |
